USB UV/VIS Quantum Power Sensor -

Product Description

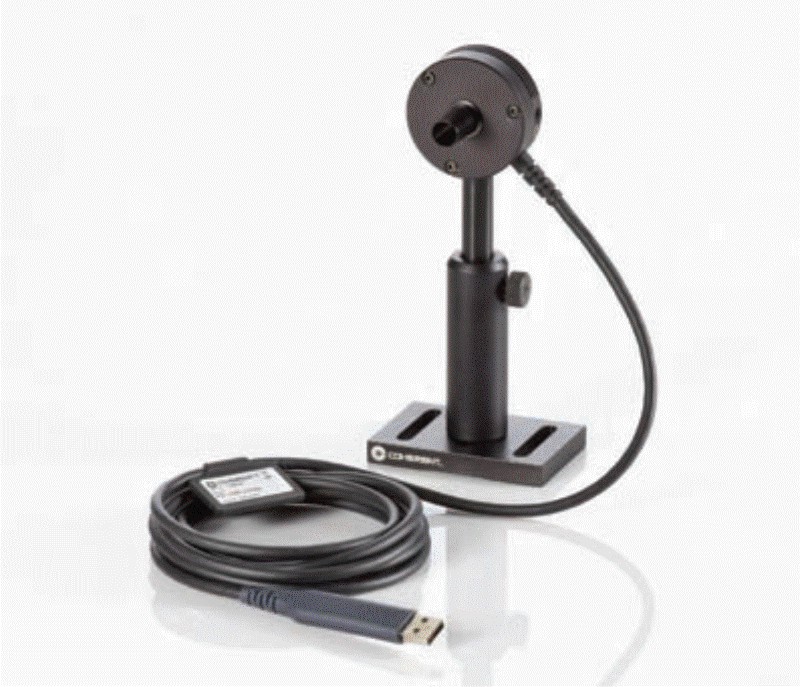

USB UV/VIS Laser Power Sensor, >100 mWatt continuous.

The PowerMax-USB sensors provide plug and play laser power measurement directly on a PC without the need for additional electronic instrumentation. PowerMax PC application software is included with the USB sensor.

UV/VIS Specifications

Wavelength Range	325 - 1064 nm
Power Range	10μW to >100 mW (wavelength dependent)
Intermittent Power	NA
Maximum Power Density	20 W/cm²
Maximum Energy Density
Active Area Diameter	10 mm
Calibration Wavelength	514 nm
Calibration Uncertainty	2%
Response Time
Detector Coating	Silicon Photodiode
Dimensions	Ø51 x 43 mm
RoHS Compliant	Yes
